MOTORIZED CABLE REELING DRUM
Motorized Cable Reeling Drums are having various type of constructional variety. Considering the following parameters type of drums are generally proposed.
MONOSPIRAL DRUM
Where able is wound concentrically in a compartment to from the turns vertically stacked in one row.
These Drums are used for all lengths and types of cable. The cable size is most economic in this system.BARREL DRUM
Where cable is wound on a barrel in single or multi layer and spread evenly throughout the length of the barrel with the help of a layering device. These drums are used for medium and long cable length of various diameters. Very long cable can be accommodated.
SEMIPARALLEL DRUM
Where able is wound in 2 or 3 rows and in multi layers to economies on space. Medium dia and length cable are used in these drums.
RANDOM DRUM
The most compact from of Cable Reeling Drum. Cable is wound at random for rows and layers. These are used for space restriction.

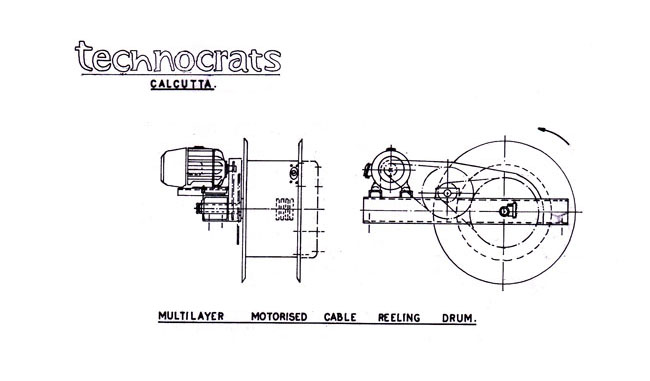

Tech Drawing
